Sheet Metal Design & Drawing
Transform concepts into production-ready sheet metal parts with precision CAD models and clear 2D drawings—optimised for manufacturability, speed, and reliability across automotive, aerospace, HVAC, and industrial applications.
Looking for Sheet Metal specialists with over 30 years experience? Dual2 provides dynamic, accurate and timely CAD services, tailored to meet your needs.
-
Fully certified & accredited
-
Work directly with the engineer managing your job
-
Pricing to suit your needs - by the hour, by the drawing or by the job. It can't get simpler.
-
Fast, free, no-obligation quote
recent customers:
What is Sheet Metal Design & Drawing
Process of creating accurate drawings for manufacturing success

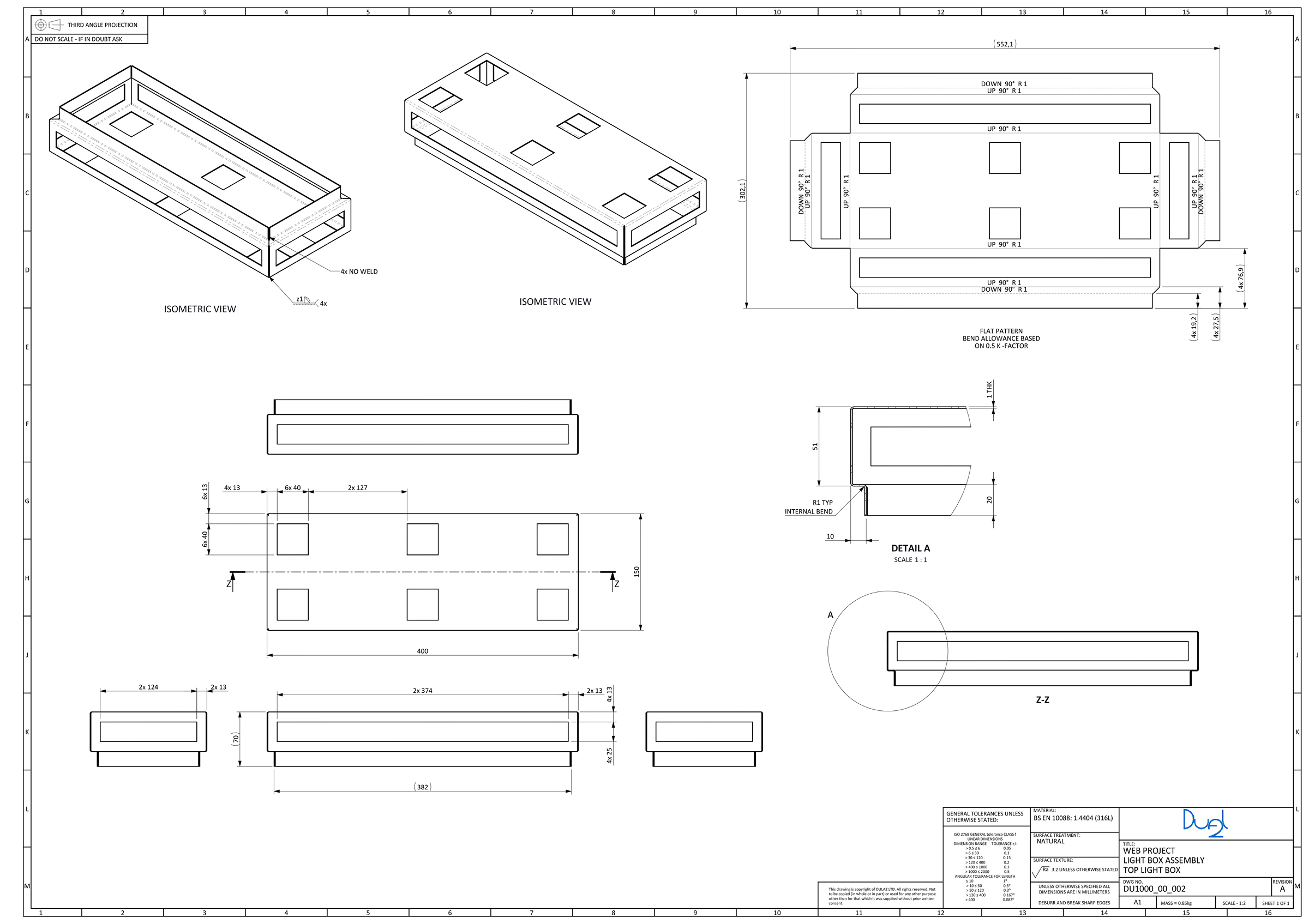

Sheet metal design and drawing is the process of creating accurate, ready-for-manufacture CAD models and 2D drawings of components made from sheet metal. This includes defining bend lines, material thicknesses, tolerances, and fabrication details.
Used in industries like automotive, aerospace, HVAC, enclosures, and industrial equipment, the service ensures your parts are production-ready and aligned with actual manufacturing capabilities from the outset.
Why Use Sheet Metal Design & Drawing
Here are 3 ways this service adds value:
Optimised for Manufacturing
Designs are tailored to reduce waste, speed up production, and fit practical manufacturing methods.
Reliable, Build-Ready Drawings
Get clear, detailed drawings with all critical dimensions, bend allowances, and material specs.
Faster Prototyping & Delivery
Well-prepared CAD files speed up the move from concept to prototype—saving time and cost.
