Special Purpose Machines

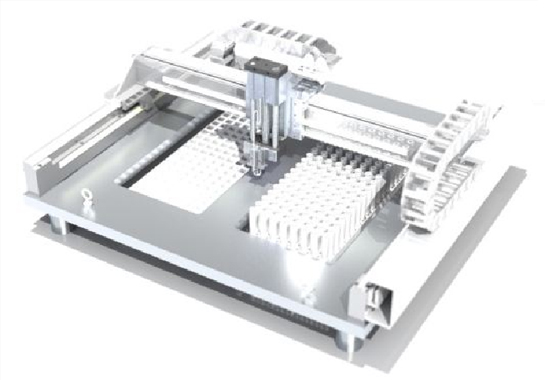

Tube Transfer Rig 3D design of a fluid dispenser which transfers filled tubes. Computer controlled, Linear motors , encoders and linear slide rails and carriages providing precise transfer of component, Pneumatic cylinders grip and raise/lower component. Reed switches sense cylinder position. Energy chain provide cable management.

Special Purpose Machines Special Purpose Machines
